INPUT IMPENDENCE: 1MΩ
OUTPUT IMPENDENCE: 10KΩ
Normal input level: -10dB
Engine A turn on only: 11dB
Engine B turn on only: 10dB
By pass: True by pass
Current Draw: both engine turn on 25mA
Power supply: DC 9V regulated
Dimension: 12(L)*10(W)*5.2(H) cm
Net Weight: 0.35 kg

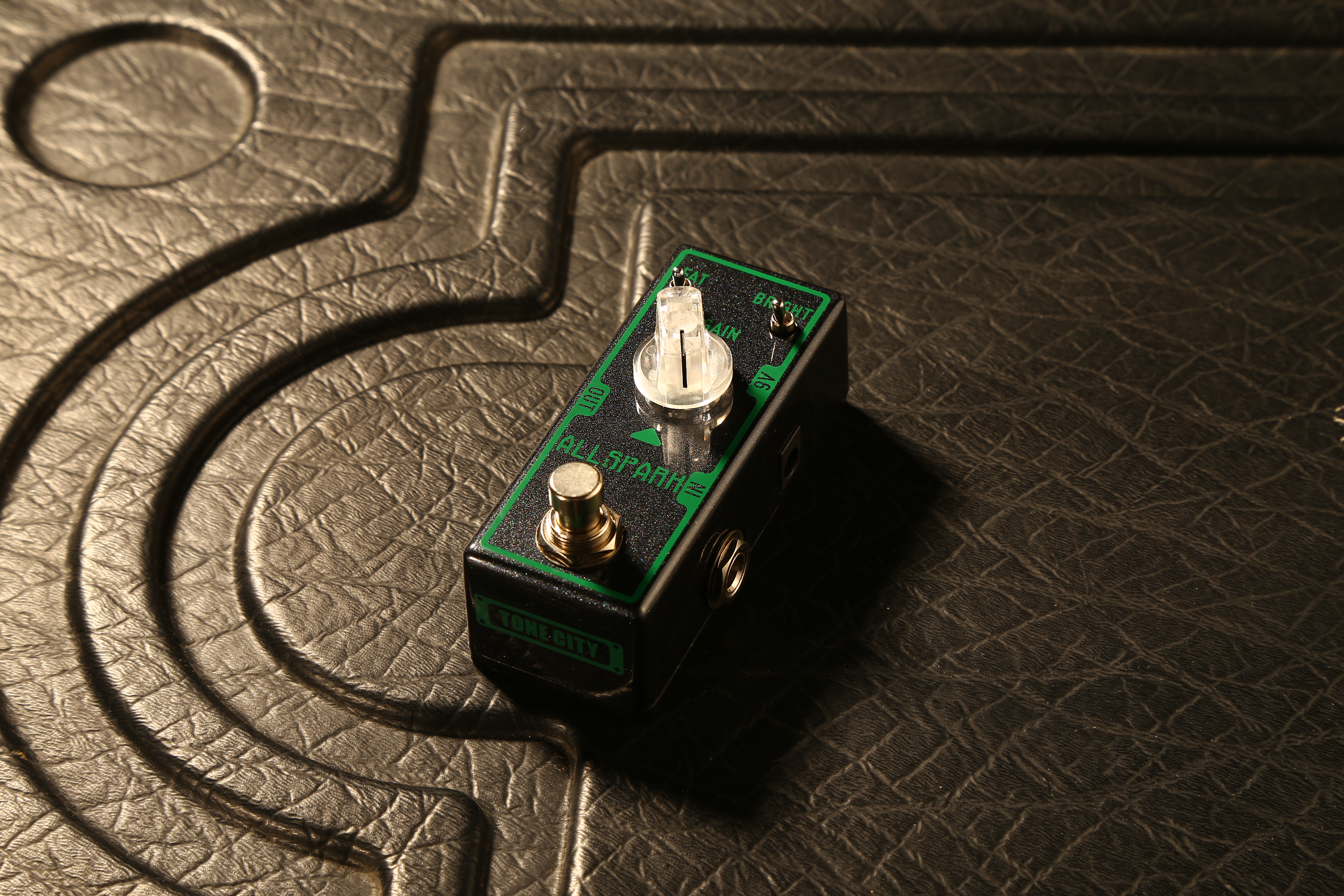

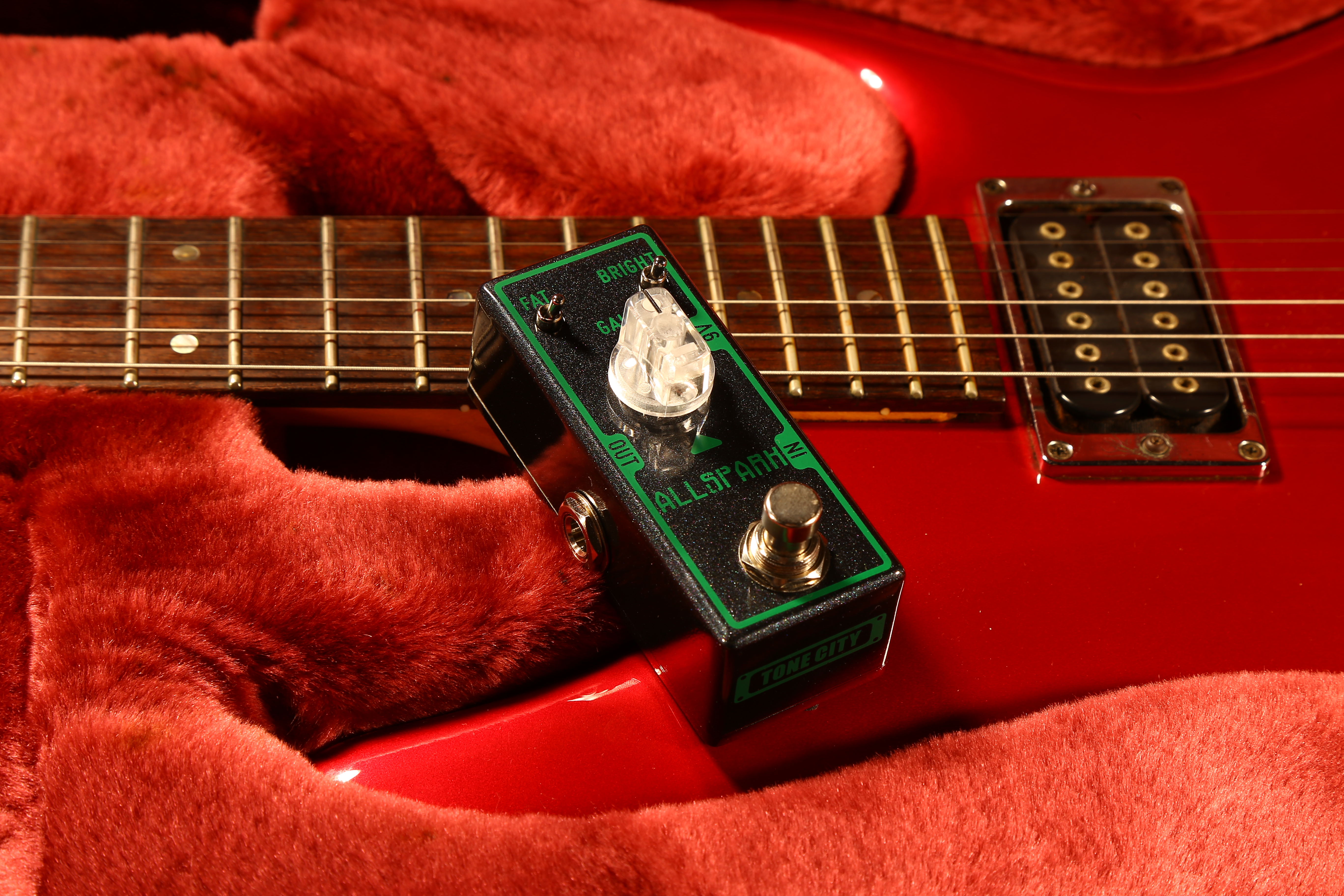

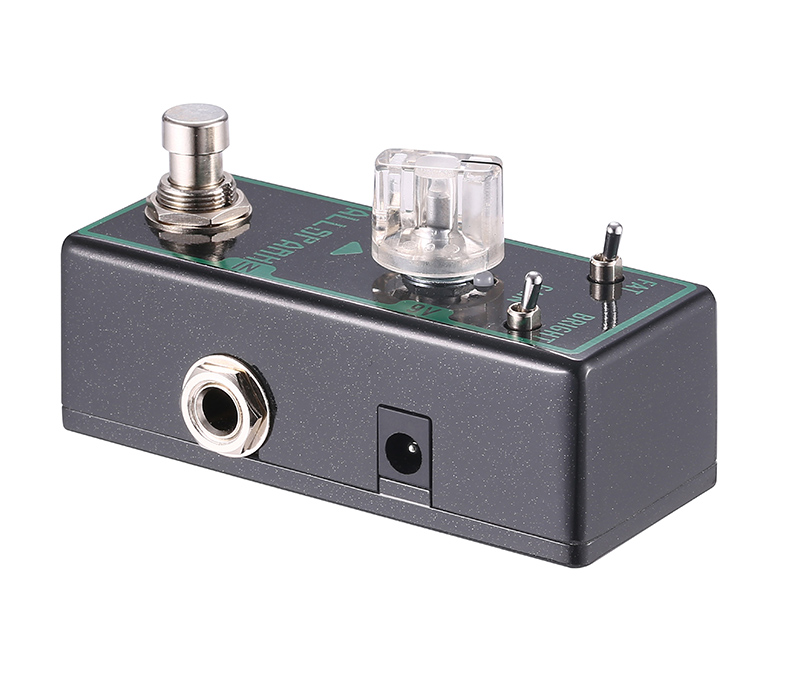

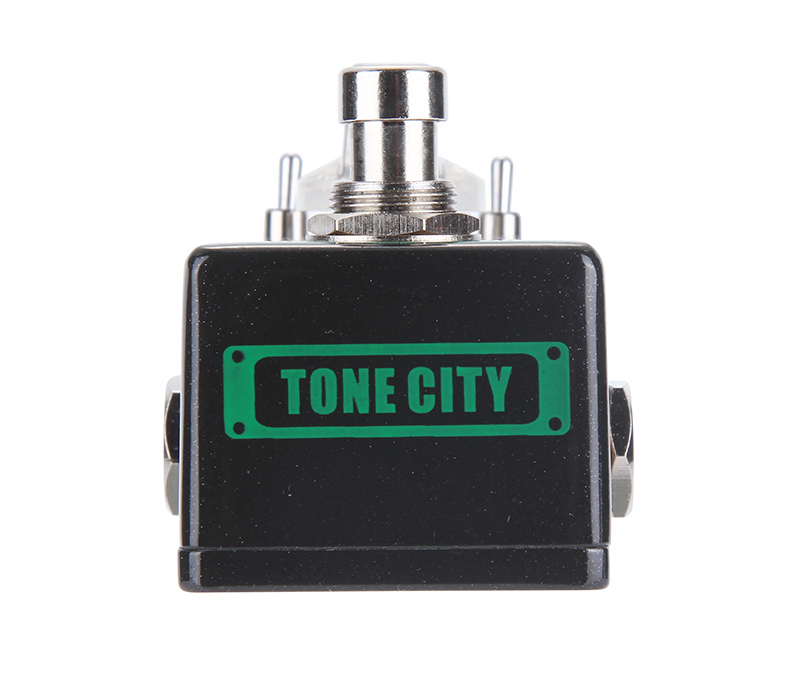

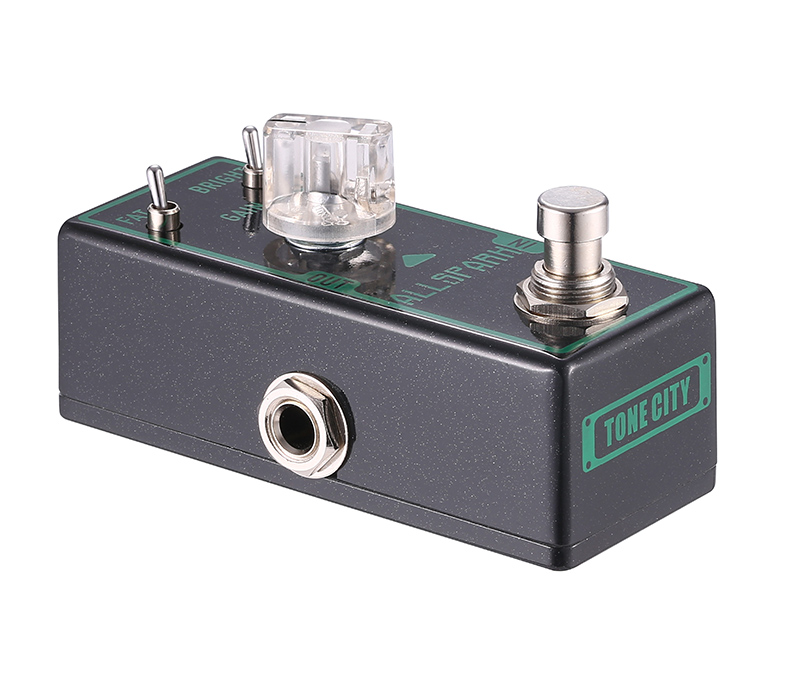

TONE CITY AllSpark is a low-gain boost pedal with a Classic A JFET design, up to 17dB purevolume boost.

Although theaim of the All Spark is to keep simple, it does however feature two essentialswitches controls that add the extra layer of versatility. They give you moreflexibility in achieving your ultimate tone. If you want more thicknessdistortion, / change the brightness of the tone / increase or decrease the lowfrequency, add more overtones, it can do all these for you without changing theCharacteristics of the original tone。


The 'bright' switch gives you that extra bit of upper mid-range bite, somethingthat you would want when playing lead parts to ensure that you cut through in amix.

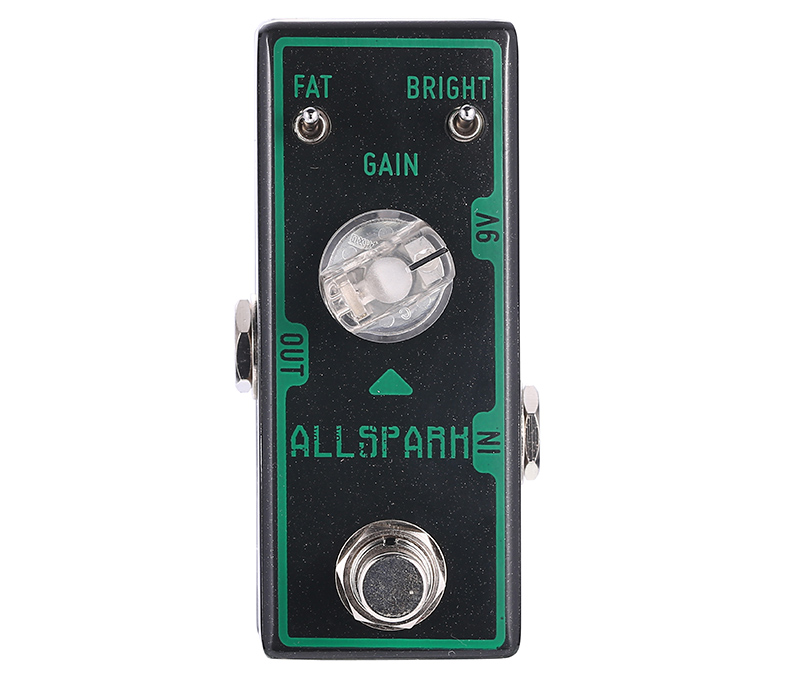

Using this simple one knob and two switch control layout, All Spark provides apure clean volume boost, that depending on your amp, will push it to the edgeof break-up or just add extra volume for the next time you want to go into asweet solo. Although the aim of All Spark is to keep it simple, it does howeverfeature two essential switches that add an extra layer of versatility.

The 'bright'switch gives you that extra bit of upper mid-range bite, something that youwould want when playing lead parts to ensure that you cut through in a mix.

The 'fat'switch enhances the lower frequencies, letting you improve the bass response ofyour amplifier. So, if you find your sound becoming a bit thin with the boostengaged, you can fatten it up with just a flick of a switch!

Learn about these and get the tone you want.


This pedal isonly powered by DC 9V power supply.

Such as TONECITY Pedal Substation and TPS SERIES All independent pedalpower supply.

True bypass
